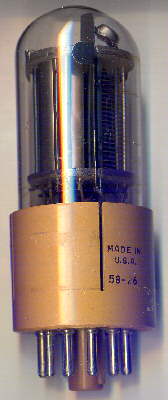

1 P 28
multiplier
Cathode : typeS5; 180..650nm; Lmax = 340nm;Sk = 40ľA/lm
direction side
Dynodes : 9
Maximum Ratings : Uak = 1250V; Ukd1 = 150V; Udd = 150V
Iks = 10ľA; Ia = 0.1mA
typical Characteristics : Sa = 50A/lm; Uak = 670V; Iad = 0.5nA; tr = 2ns
applications : photometric measurements, also in the uv-range
 1  d1  9  d9
 2  d2  10  a
 3  d3  11  k
 4  d4
 5  d5
 6  d6
 7  d7
 8  d8
detailed data
on the Tube CD
special 11 pin connections
